Wheel Loader 4-In-1 Bucket

4 in1 Buckets for Wheel Loaders

McCormack Industries 4in1 buckets are heavy-duty multi-purpose buckets suited for compact wheel loaders with operating weight up to 7.5t and medium wheel loaders with operating weight up to 20t.

Backed by ongoing support and service, all McCormack Industries buckets have replaceable parts to ensure longevity.

4in1 Bucket Standard

Inclusions

Built tough and durable with all pivot points feature replaceable knockout bushes to stand up to years of use. Teeth and a bolt on cutting edge can be added as an optional extra for compact loaders while the small and medium wheel loader bucket comes standard with 2 bolt-on cutting edges. A wide variety of lugs available to suit your machine.

Buy Once, Buy McCormack

Heavy Duty

Construction

The McCormack Industries 4in1 buckets are quality made to outlast the life of your wheel loader.

The heavy-duty design and construction using high tensile plate, with 450 Grade wear strips on all leading edges ensures it will stand up to the rigorous demand of the most demanding earthmoving work.

Coupled with McCormack's 40 years of experience and renowned after sales service, these buckets are your best choice in the market.

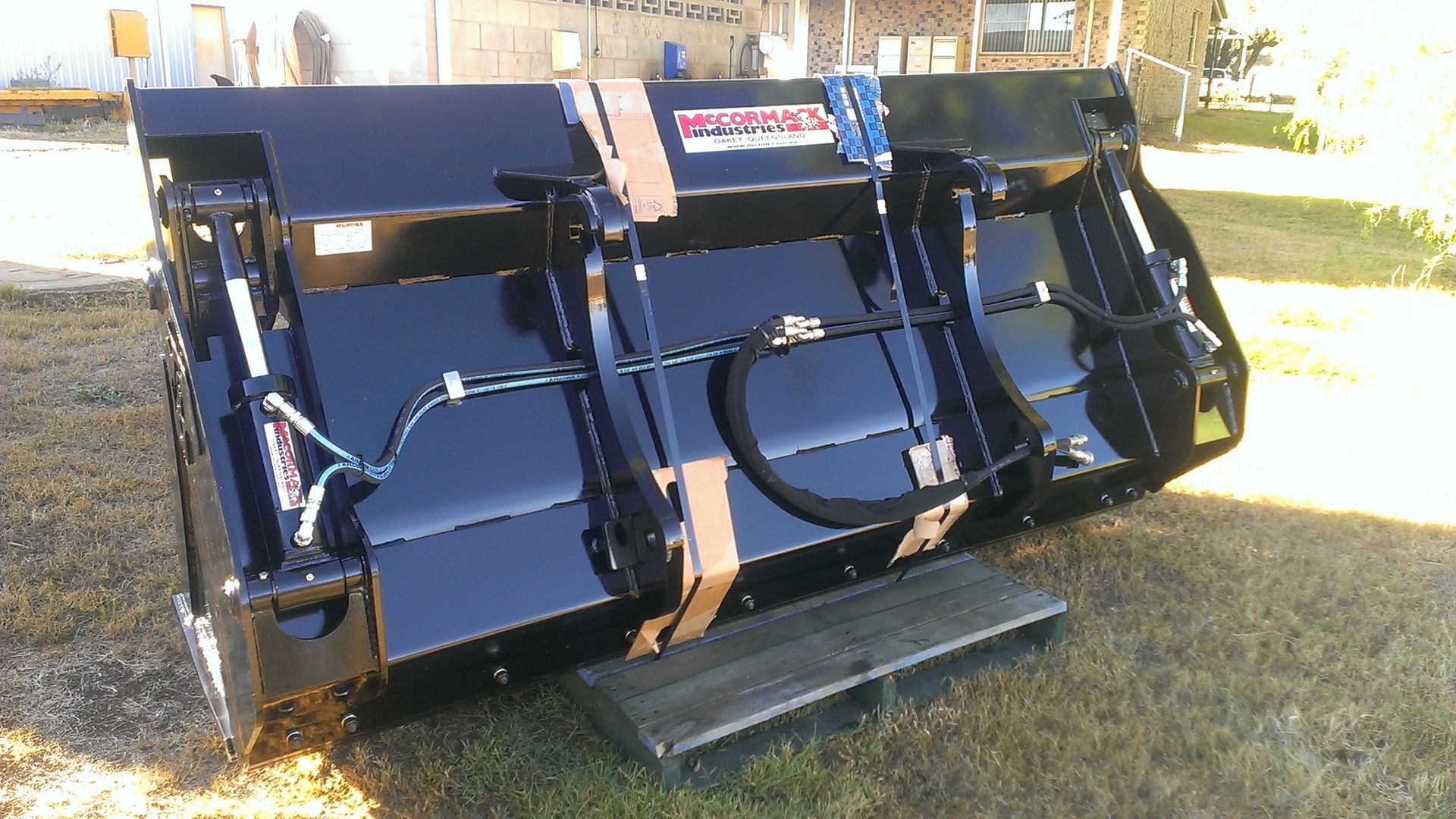

Note: shown with optional lifting lug

Specifications

Wheel Loaders - up to 7.5t

Width	1800mm	2000mm	2200mm	2400mm

Capacity	0.7m3	0.75m3	0.83m3	0.9m3

Weight	450-520kg	500-575kg	630-680kg	730-780kg

Wheel Loaders - 7.5t to 20t

Width	2400mm	2550mm	2700mm	3000mm

Capacity	1.00m3, 1.25m3, 1.50m3, 1.75m3, 2.00m3	1.85m3, 2.13m3	2.25m3	2.20m3, 2.50m3

Weight		1500kg

*Engine horsepower rating is used as a guide only to selecting the appropriate bucket model. Contact McCormack Industries for confirmation on the correct bucket size
