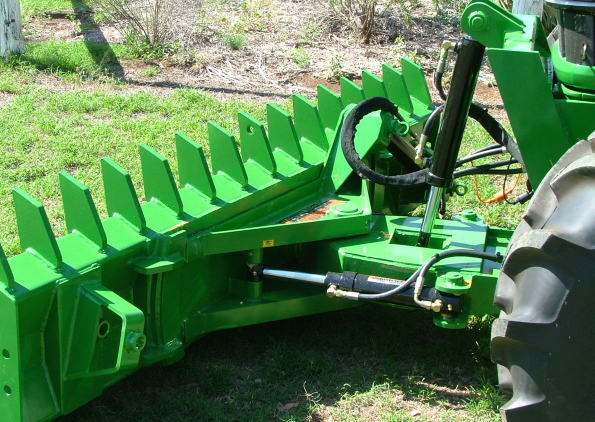

Front End Loader Dozer Blade & Stick Rake (Blade Rake)
Blade Rakes are reversable with a dozer blade on one side and a stick rake on the other, essentially giving you 2 attachments.
Available in widths of 1800mm to 3000mm, in light or medium duty the McCormack Industries tractor blade rakes are an in-expensive solution to moving trees and debris around the farm.
Blade Rakes for Tractor Loaders
McCormack Industries manufactures blade rakes also known as Bull Rakes for all makes of tractor loaders.
Widths range from 1800mm to 3000mm with custom sizes available upon request.
All blade rakes are fitted with a reversible bolt on cutting edge on one side and 200mm stick rake tyne on the other side. The blade is approximately 710mm high, with other heights available. Our blades can be mounted to your tractor loader using our universal backing frame.
Blade Rake Features:
- Rugged Australian Made construction and reliability
- Reversible bolt on cutting edge as standard
- Available in widths from 1800mm to 3000mm.
- Blade height is 500mm. Tynes 200mm with an overall height of approx. 710mm
- Compatible with our universal backing frame to suit all makes of tractor loader or skid steers.
- Optional extras available such as hungry boards, folding wings, depth skids, angle and tilt assemblies and grill protection
Easy Switch between Blade & Rake
The McCormack Industries Blade Rake is fast and easy to flip between the dozer blade and the stick rake.
Simply lie the blade face down on the ground, disconnect the blade from the mount by pulling the 2 pins and pick it up from the other direction. Reinstall the pins and you're ready to go.
Blade Rake Accessories
Manual or Hydraulic
Angle
This is a simple accessory for all blades, blade/rakes and stick rakes. It puts the blade on an angle to make grading easier.
This product fits between one of the attachment mounts and the backing frame on one side. The other blade mount on the other side stays locked to the backing frame, thereby giving the blade an angle to the backing frame.
It can be easily removed and installed by simply removing and replacing two pins.
Blade Wings
To extend the width of your blade or blade/rake tipped wings can be added, these will increase the width of your attachment by an extra 1000mm, Increasing the efficiency and productivity of your operation.
These wings are also made to be removable by undoing 3 bolts each side to allow for ease of transportation.
Buy Once, Buy McCormack
Blade Rake Grab
Increase the functionality with any stick rake or blade/rake by adding a spear grab. The grab retracts fully out of the way for typical use but can be lowered to grip and lift what’s been collected. Spears are replaceable if bent.
A Spear Grab addition provides a fast way to move trash across a paddock without the need of pushing it along the ground all the way to the pile.
Depth Skids
When using a blade, blade/rake or stick rake the depth of your attachment can be controlled by fitting Depth Skids.
The blade can be lowered until the depth skids contact the ground.
These have a range of holes giving 20mm incremental adjustments in depth.

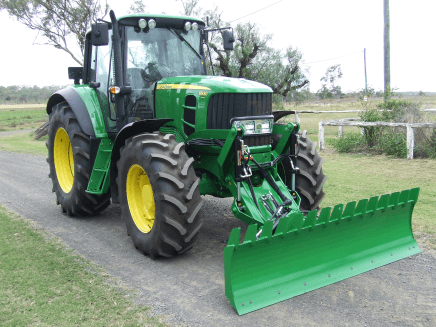

Axle Mounted Blade Rakes
McCormack Industries manufactures a wide range of over and under axle dozer blades to suit tractors.
