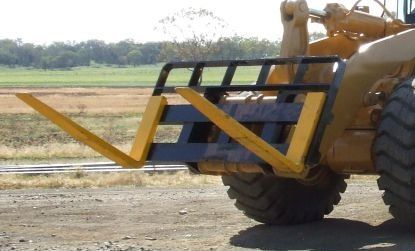

Wheel Loader & Telehandler Pallet Forks
Australian made heavy duty ITA style pallet forks for backhoes, telehandlers and wheel loaders.
The class 3 and 4 pallet forks are certified to Australian standards and feature a range of tyne options
Industrial Pallet Forks
McCormack Industries manufactures a range of heavy-duty industrial pallet forks for wheel loaders, backhoes and telehandlers.
These range from widths of 1500mm or 2400mm, with capacities up to 8t. Depending on the application the tynes used are ITA (forklift style) or pin eye type.
These are available with side shift or hydraulic fork positioning as an optional extra. The frames can be made to suit a wide variety of machine attachment lugs.
The following telehandlers require a load holding valve - Merlo, Dieci, Faresin and Genie.
Features:
- Available in class 3 and 4
- Designed to suit most machine attachment lugs
- Certified to Australian Standards
- A wide variety of widths and capacities available (see below tables)
- Hydraulic side shift and fork positioning available as an option
- Also available in floating tyne design
Class 3 ITA Pallet Forks - Max Capacity 5000kg
| Frame Width | Capacity | Tyne Length Options | Optional Side Shift | Optional Side Shift & Fork Positioning |
|---|---|---|---|---|
| 1500mm | 5000kg (5t) | 1070mm, 1220mm, 1525mm, 1830mm | Yes | Yes |
Class 4 ITA Pallet Forks - Max Capacity 8000kg
| Frame Width | Capacity | Tyne Length Options | Optional Side Shift | Optional Side Shift & Fork Positioning |
|---|---|---|---|---|
| 1500mm | 8000kg (8t) | 1070mm, 1220mm, 1525mm, 1830mm | Yes | Yes |
| 2400mm | 8000kg (8t) | 1070mm, 1220mm, 1525mm, 1830mm | Yes | Yes |

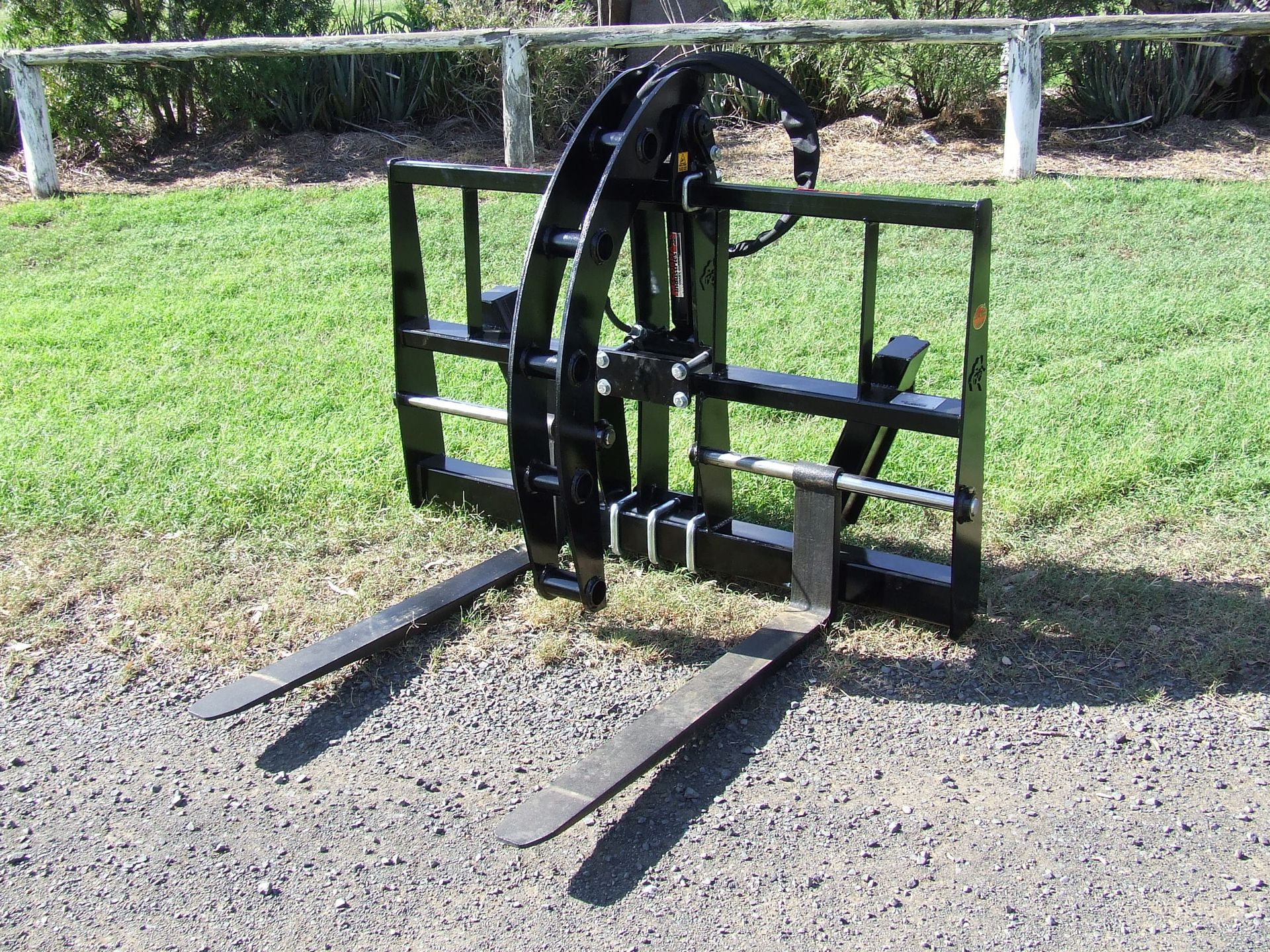

Pallet Fork Grab
Add a single or dual arm grab to your pallet forks to safely and securely carry long objects such as logs, timber or concrete sleepers, pipes and more.
3D Model - 360deg. View
Pallet Forks for Tractors
Prefer to use your tractor to manage pallets? McCormack Industries also manufactures pallet forks for tractors. Click link to view our range
Lifting Jibs
McCormack Industries manufactures a wide range of stick rakes and blade rakes to suit tractors, skid steers, telehandlers and wheel loaders.
