Over Under Axle Blade Rakes

Axle Mounted Blade Rakes

Available in over or under axle variations, as well as light and medium duty, these blade rakes are quality made in Australia.

Over Axle Tractor Blade Rakes

McCormack over axle blade rakes or Bull Rake operate similarly to the under axle blade, except they offer more ground clearance with a lift height of 750mm.

Hydraulic options are available depending on the functionality required, including using the tractor’s remotes or a cable-operated joystick can be fitted. We offer manual and hydraulically operated tilt and angle.

Over Axle Blade Rake Features:

Australian Made Quality
Optional wings
Includes 2 lift cylinders
750mm lift height
Dozer Blade is 500mm high with 200mm stick rake tynes. Total height is approx. 710mm.
Available with hydraulic or manual angle and tilt
Light duty for small tractors available 1200mm to 1600mm
Medium duty blade rakes available in width of 2100mm, 2400mm, 2700mm to 3000mm depending on tractor width and horsepower.

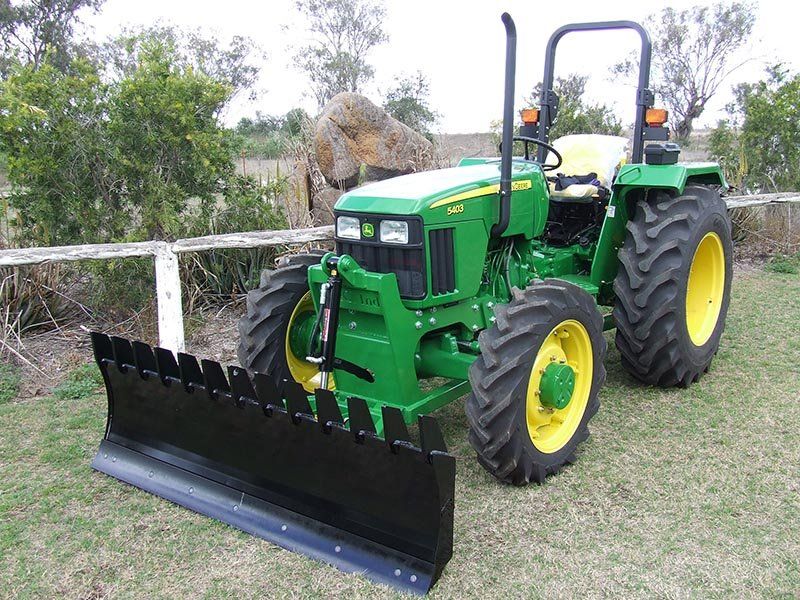

Under Axle Tractor Blade Rakes

An under axle blade rake provides a heavy-duty platform for pushing trees, logs and debris. With a lift height of approximately 500mm, the under axle blade rake is suited to more heavy-duty work providing superior pushing power and strength.

Different hydraulic options are available depending on the functionality required. These include using the tractor’s remotes, or a cable-operated joystick can be fitted. We offer manual and hydraulically operated tilt and angle.

Under Axle Blade Rake Features:

Australian Made Quality
Optional wings
Includes 2 lift cylinders
500mm lift height
Dozer Blade is 500mm high with 200mm stick rake tynes. Total height is approx 710mm.
Available with hydraulic or manual angle and tilt
Light duty for small tractors available 1200mm to 1600mm
Medium duty blade rakes available in width of 2100mm, 2400mm, 2700mm to 3000mm depending on tractor width and horse power.

Blade Rake Accessories

Blade Wings

To extend the width of your blade or blade/rake tipped wings can be added, these will increase the width of your attachment by an extra 1000mm, Increasing the efficiency and productivity of your operation.

These wings are also made to be removable by undoing 3 bolts each side to allow for ease of transportation.

Manual or Hydraulic

Angle

This is a simple accessory for all blades, blade/rakes and stick rakes. It puts the blade on an angle to make grading easier.

This product fits between one of the attachment mounts and the backing frame on one side. The other blade mount on the other side stays locked to the backing frame, thereby giving the blade an angle to the backing frame.

It can be easily removed and installed by simply removing and replacing two pins.

Depth Skids

When using a blade, blade/rake or stick rake the depth of your attachment can be controlled by fitting Depth Skids.

The blade can be lowered until the depth skids contact the ground.

These have a range of holes giving 20mm incremental adjustments in depth.

Blade Rake Grab

Increase the functionality with any stick rake or blade/rake by adding a spear grab. The grab retracts fully out of the way for typical use, but can be lowered to grip and lift what’s been collected. Spears are replaceable if bent.

A Spear Grab addition provides a fast way to move trash across a paddock without the need of pushing it along the ground all the way to the pile.
