Pipe Handler Grabs for Wheel Loaders & Telehandlers
Dual Cylinder and Floating grab designed and Australian made quality pipe handlers to suit your wheel loader and telehandler.
Pipe Handler - Dual Hydraulic Grab

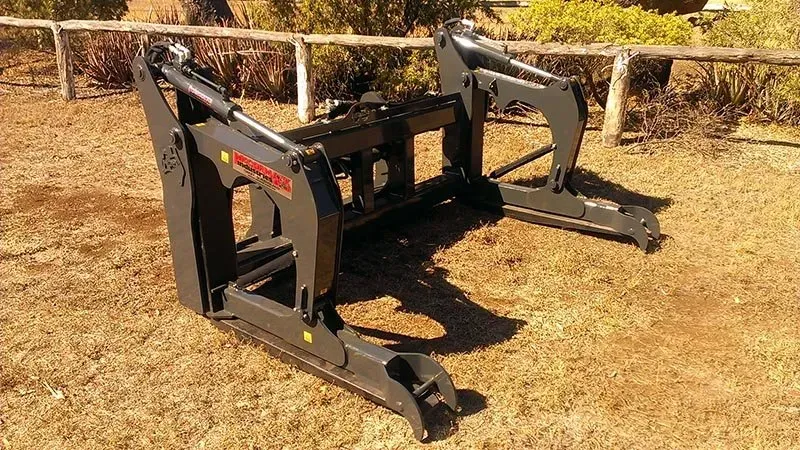

The McCormack Industries Bi-fold dual hydraulic arm design Pipe Handler is designed to handle long pipes, poles and tubes safely and securely. The dual-folding arm system allows for effective clamping of both small and large diameter pipes, while also retracting to function as a conventional pallet fork frame.
The hydraulic system is setup so that the arms will not release the load off the tynes even if the machine shuts down. Manufactured from high tensile steel, the tynes, shaft, and pins provide exceptional strength, durability and safety.
Features:
- Automatically secures pipe sizes from 100mm to 910mm (4 to 36 inch) diameter with a 4 and 6 tonne pipe handling capacity
- Hydraulic valves ensure complete load safety when clamping long objects
- Clamping arms retract to allow unimpeded use of the pallet forks with a 4 to 8 tonne capacity
- All models available with optional hydraulic horizontal fork positioning
- Different models available to suit all industries and machines
Pallet Fork Capable
The arm retracts allowing the pipe handler frame to be used as standard pallet forks.
Two attachments in one!
Hydraulic Grab Pipe Handler Specifications
| Model | 4N222 | 6N436 |
|---|---|---|
| Pallet Fork Capacity | 4000 kg | 8000 kg |
| Pipe Handling Capacity | 4000 kg | 6000 kg |
| Clamping Pressure | < 1000 kg | < 2000 kg |
| Pipe Range | 2” - 22” | 4” - 36” |
| Fork Width (min-max)* | 496 mm - 2334 mm | 260 mm - 2334 mm |
| Approx Weight* | 1250 kg | 1550 kg |
| Approx Height | 2410 mm | 2910 mm |
Pipe Handler - Floating Grab

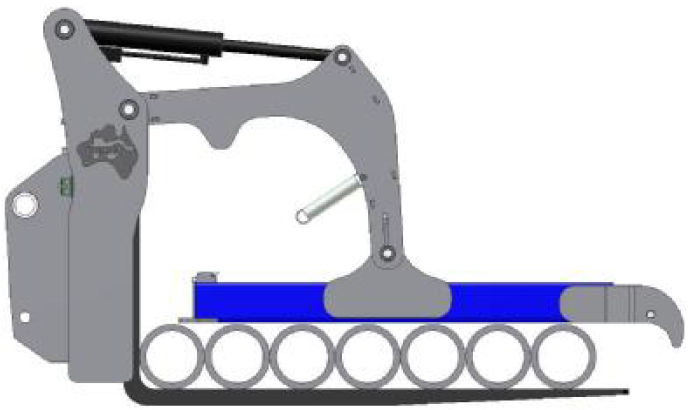

The two floating arms act independently pivoting to secure different shapes and diameters of pipe.
Specifically designed to handle long pipes, tubes and poles safely and securely. With a capacity of 4000kg it is suited for a wide range of telehandlers and wheel loaders. Load holding valves ensure the pressure cannot be released even if the machine shuts down. Different length tynes are available up to 2400mm long to unload a whole truck width of pipes. Also available with optional side shift to allow a load of pipes to be shifted up close to a truck headboard when loading.
Features:
- Floating arms act independently to secure different shaped pipe and materials
- Hydraulic valves ensure complete load safety when clamping long objects
- Available to suit a range of machine attachment lugs
- Made in Australia
Floating Design
- Clamping arm is self-adjusting to apply even pressure over all load situations
- Unload a full load of pipes from a truck with the 2400mm long model
- Clamping arm is spring loaded to secure it in the upright position
- Clamping arm retracts to allow tynes to pick up pipes
Floating Grab Pipe Handler Specifications
| Model (Length) | 1200mm | 1530mm | 2400mm |
|---|---|---|---|
| Pallet Fork Capacity | 4000 kg | 4000 kg | 4000 kg |
| Pipe Handling Capacity | 4000 kg | 4000 kg | 4000 kg |
| Pipe Range | 2” - 22” | 2” - 22” | 2” - 22” |
| Fork Length | 1200mm | 1530mm | 2400mm |
| Approx Weight* | 1000 kg | 1100 kg | 1200 kg |
Download Printable Flyer
Do you need a printable or emailable version of the Pipe Handlers? Click on the link to the right to get yours now.
Lifting Jibs

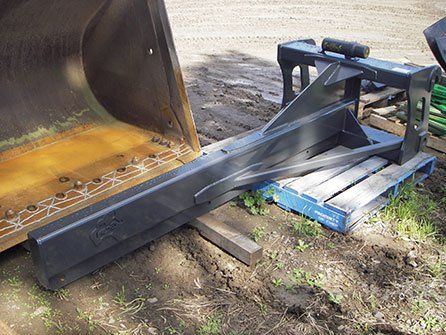

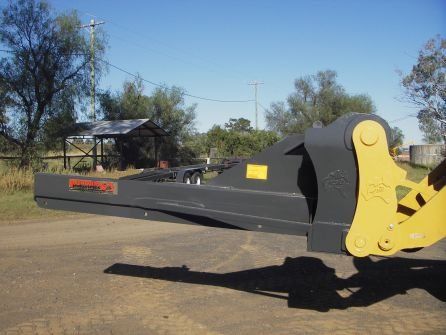

McCormack Industries manufactures a wide range of industrial lifting jibs to suit telehandlers and wheel loaders.
