High Dump Buckets

We manufacture 2m³ to 8m³ Overtipping High Dump Buckets also known as Toe Tip Buckets to suit Wheel Loaders. With over 40 years of manufacturing experience, you can trust the McCormack Quality.

Extend The Reach of Your Wheel Loader

One of the downfalls of loading light and loose material into high sided trucks is that conventional buckets aren’t able to unload properly or even reach over the side.

The Overtipping high Dump bucket or toe tip buckets incorporates a separate frame which effectively allows the bucket to tip from near the front cutting edge. This increases the height which the loader can clear while allowing all the material to be dumped efficiently.

They are ideal for loading cotton seed, grain and green waste. Overtipping High Dump Buckets can be made to suit all makes of wheel loader.

Quality Construction

High Dump Buckets are manufactured in our QLD factory from quality materials.

The buckets come standard with a replaceable bolt on cutting blade and greaseable bushes and replaceable pins.

Renowned for their heavy-duty construction and durability McCormack High Dump Buckets are built to last for your peace of mind.

Australian Made

Easy Maintenance

Remote grease lines and fittings ensures that maintenance is quick, easy and safe to complete.

Hard to reach grease nipples are often overlooked by the operator resulting in premature wearing of pins and bushes.

McCormack Industries High Dump buckets have been carefully designed to last longer than the rest.

You can trust a McCormack Attachment.

Protect Your Ground Tarps

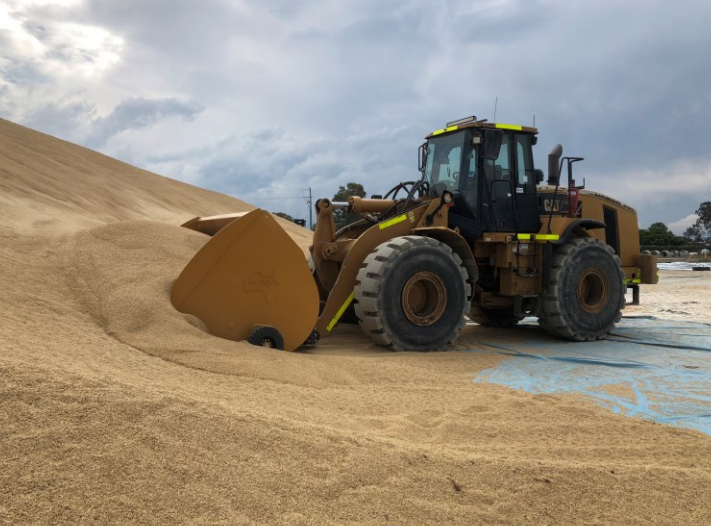

McCormack Industries High Dump Buckets are available with optional wheels which prevent the bottom of the bucket from engaging with the ground to protect your ground tarp.

The wheels are depth adjustable for ultimate control of your loading bucket position.

Specifications

Standard High Dump Bucket

WIDTH	HEAPED CAPACITY	APPROX WEIGHT
2400mm	3m³	1740kg
2400mm	3.5m³	1800kg
2400mm	4m³	1900kg
2550mm	4m³	1950kg

High Capacity with Internal Arms

WIDTH	HEAPED CAPACITY	APPROX WEIGHT
2700mm	4.5m³	2050kg
2700mm	5m³	2100kg
2900mm	5.5m³	2200kg
2900mm	6m³	2200kg
3200mm	7m³	2675kg
3500mm	8m³	2875kg

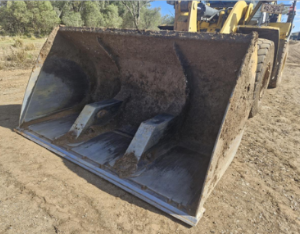

TESTIMONIAL - 9000hrs and Still Going Strong

"Here at organic Nutrients, we face the challenges of loading high sided trucks and maneuvering lightweight materials on site, we needed a spesialised design to suit our business needs.

We received the McCormack Industries high dump bucket fitted to our CAT 950M back in 2016/2017 and currently both have almost 9000hrs on each bucket. It is a testimonial to their engineering and design. They have played such a valuable component to our business"

Brett Tigges, Production Manager at Organic Nutrients.

3D Model - 360deg. View

Download Printable Flyer

Do you need a printable or emailable version of the High Dump Bucket flyer? Click on the link to the right to get yours now.

High Dump Bucket Flyer
