Front End Loader Dozer Blade
Available in widths of 1800mm to 2700mm and in light or medium duty, these tractor dozer blades are an in-expensive solution to moving material around the farm.
Dozer Blade for Tractor Loader
McCormack Industries manufactured blades can be made to suit all makes of tractor loaders.
Widths range from 1800mm to 2700mm with custom sizes available upon request.
All blades are fitted with reversible bolt on cutting edges and are approximately 500mm high standard with other heights available. Our blades can be mounted to your tractor loader using our universal backing frame. This allows for optional extras like our angle or tilt assemblies to be fitted.
Loader Arm Dozer Blade Features:
- Rugged construction and reliability
- Reversible bolt on cutting edge standard
- Available in widths from 1800mm to 2700mm in a standard height of approx.
- Blade height is 500mm
- Compatible with our universal backing frame to suit all makes of tractor loader or skid steers
- Optional extras available such as hungry boards, folding wings, depth skids, angle and tilt assemblies and grill protection
- Made in Australia
Blade Rake Accessories
Blade Wings
To extend the width of your blade or blade/rake tipped wings can be added, these will increase the width of your attachment by an extra 1000mm, Increasing the efficiency and productivity of your operation.
These wings are also made to be removable by undoing 3 bolts each side to allow for ease of transportation.
Manual or Hydraulic Angle
This is a simple accessory for all blades, blade/rakes and stick rakes. It puts the blade on an angle to make grading easier.
This product fits between one of the attachment mounts and the backing frame on one side. The other blade mount on the other side stays locked to the backing frame, thereby giving the blade an angle to the backing frame.
It can be easily removed and installed by simply removing and replacing two pins.

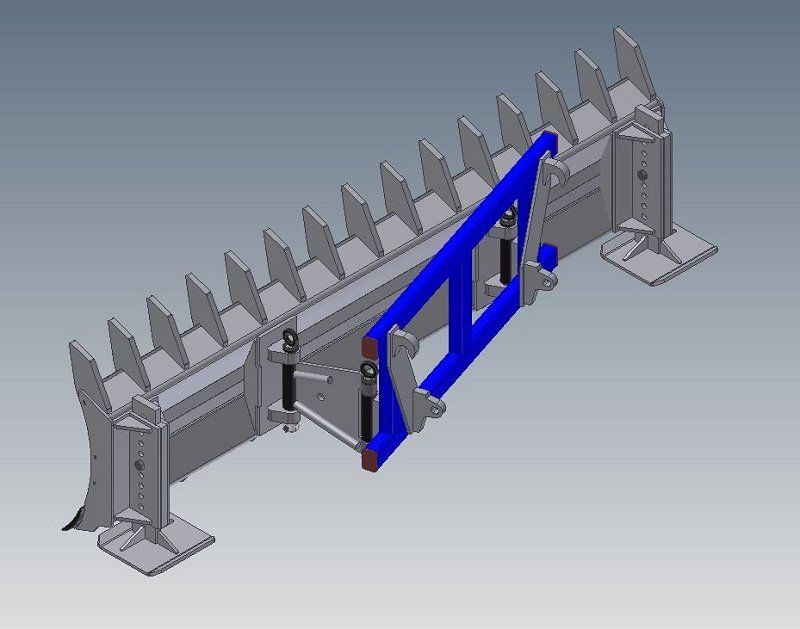

Depth Skids
When using a blade, blade/rake or stick rake the depth of your attachment can be controlled by fitting Depth Skids.
The blade can be lowered until the depth skids contact the ground.
These have a range of holes giving 20mm incremental adjustments in depth.

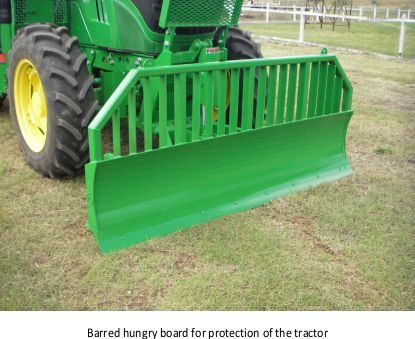

Hungry Board
To increase the capacity and to protect your machine, hungry boards can be fitted to the top of the blade or blade/rake. These can be either solid filled, barred or mesh.
Heights and configurations can be modified to suit customer requirements and needs.
Photo 2 shows a solid filled hungry board, also shown with depth skids, hydraulic tilt assembly and bolt on wings.
Axle Mounted Dozer Blades
McCormack Industries manufactures a wide range of over and under axle dozer blades to suit tractors.
