Our 4 in 1 buckets are a high quality multi-purpose product with a range of models to suit all applications. They range from light duty construction for low horsepower tractors, to heavier versions for large high horse power tractors. Other models are constructed especially for telehandlers, with an extra heavy duty model for large wheel loaders. 4in1 buckets are a versatile tool with a range of features, these include:
Buckets can be fitted to any make and model of Front End Loader
They are split into 3 different types based on tractor horse power.
Some of the standard specs of our 4 in 1 range include:
Suited for small compact Tractor Loaders
Less than 50 HP
The Type 3 or compact range of 4in1s are a light but durable range of buckets. Like our bigger buckets, the compact range is Australian made with Australian steel and a great little bucket if you need a 4in1 that won’t weigh you down.
Bucket Sizes | |||
Width | 1300mm | 1500mm | 1600mm |
Capacity | 0.25m3 | 0.26m3 | 0.27m3 |

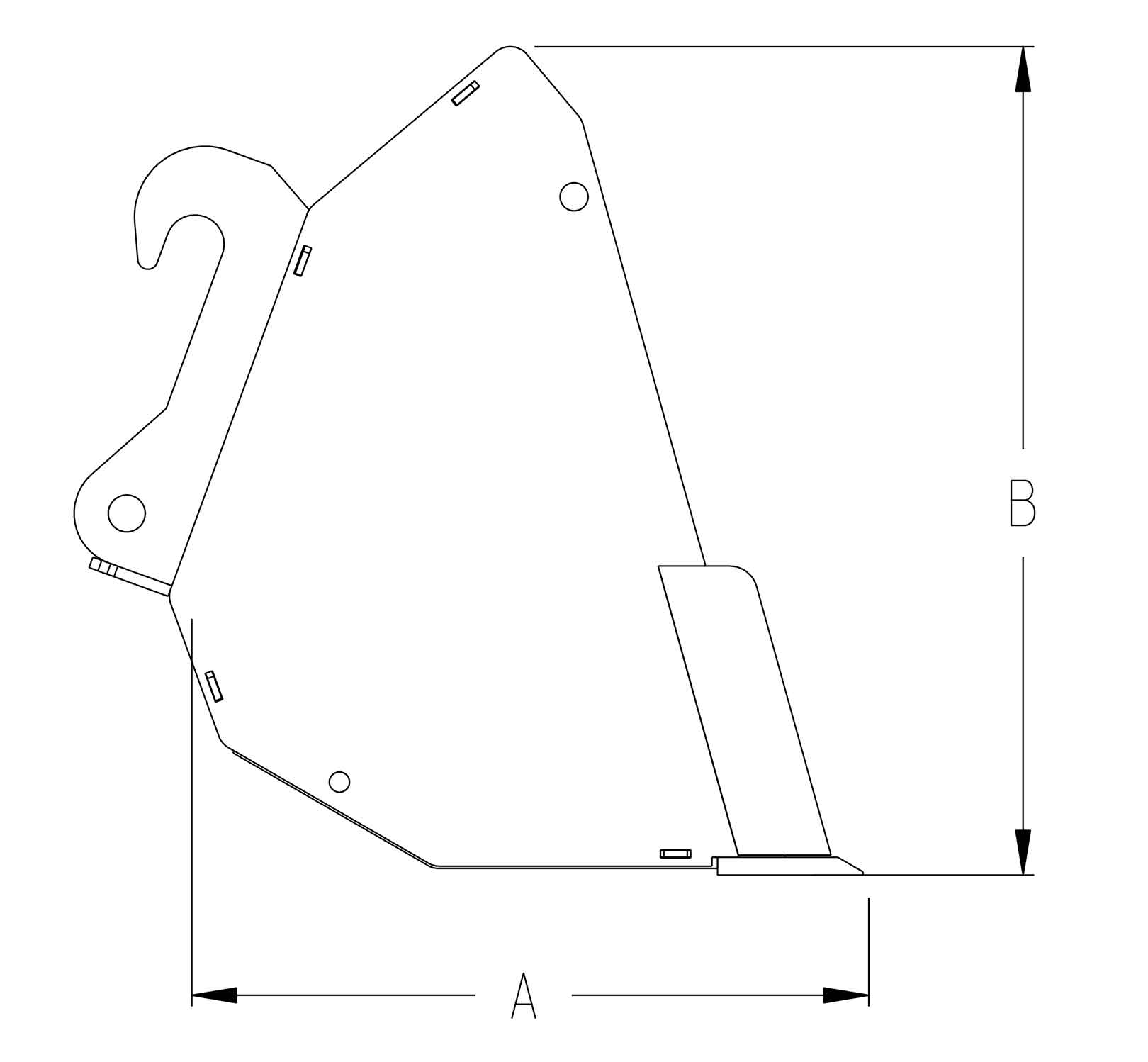

Depth (A) | 480mm | 560mm | 560mm |
Height (B) | 440mm | 450mm | 450mm |
Weight | 160kg | 185kg | 200kg |
Suited for Tractor Loaders
Less than 90 HP
The lighter duty Type 2 McCormack bucket is an economical but durable 4in1 bucket. Cheaper than the Heavy duty Type 1 model, but ideally suited for tractors under 90HP. Still Australian made with Australian steel but with a more economical design. This bucket is durable and great for general duties around the farm and is built for Australian conditions.
Bucket Sizes | |||
Width | 1800mm | 2100mm | |
Capacity | 0.50m3 | 0.52m3 | |
Depth (A) | 660mm | 660mm | |
Height (B) | 560mm | 560mm | |
Weight | 315kg | 360kg |
Suited for tractor loaders
Above 90 HP and small Telehandlers
The Type 1 4in1 buckets built by McCormack Industries are number one when it comes to toughness. The heavy duty design and strong construction of the bucket ensures it will stand up to the rigorous demand of general earthmoving work. This class of bucket comes standard with the industrial quality hydraulic rams that are used on all our 4in1’s but it also comes with two extra cutting edges on the front sides of the bucket as depicted in photos.
Bucket Sizes | ||||
Width | 1800mm | 2000mm | 2200mm | 2400mm |
Capacity | 0.52m3 | 0.59m3 | 0.65m3 | 0.71m3 |
Depth (A) | 630mm | 630mm | 630mm | 630mm |
Height (B) | 650mm | 650mm | 650mm | 650mm |
Weight | 390kg | 425kg | 510kg | 520kg |
Buckets can be fitted to
Any make and model of Telehandler
McCormack Industries manufactures 4in1 buckets specifically suited to Telehandlers, they range in widths and capacities to suit a wide variety of machines. All pivot points feature replaceable knockout bushes and they incorporate wear plate material on all leading edges. These features make them ideal for earthmoving and general agricultural or construction duties.
Bolt on Cutting Edges or Bucket teeth can be added as an extra.
Buckets can be fitted to
Any make and model of Wheel Loader
Wheel Loader Buckets are predominantly constructed of high tensile plate, with 450 Grade wear strips on all leading edges. They are built tough and durable with all pivot points feature replaceable knockout bushes to stand up to years of use. Bolt on Cutting edges come as standard on the leading edge of the rear assembly as well as the front assembly’s leading edge. Teeth can be added as an optional extra.
General Purpose Buckets are ideal for handling gravel, sand and other debris.
Made to suit Tractor Loaders, Telehandlers and Wheel Loaders.
Like all our products made in the Aubigny workshop, General Purpose buckets are made using Australian sourced steel. We also make them with standard side cutting edges and a weld on edge along the front length of the bucket.
McCormack Industries buckets are all available with the optional extra of a bolt on cutting edge or teeth.
Don’t have a McCormack loader? That’s ok, we can make all our gear suit any loader you have whether it’s quick hitch or manual hook up.
Bucket Sizes | ||||
Width | 1500mm | 1800mm | 2100mm | 2400mm |
Capacity | 0.33m3 | 0.51m3 | 0.70m3 | 0.80m3 |
Depth | 590mm | 605mm | 650mm | 680mm |
Height | 585mm | 740mm | 780mm | 780mm |
Weight | 160kg | 210kg | 260kg | 305kg |
McCormack Industries manufactures general purpose buckets suitable for Telehandlers. These buckets are ideal for handling gravel, sand and other debris. The Telehandler style bucket comes standard with side and front cuttings edges, with optional bolt on edges and teeth available. They feature heavy duty economical construction with a range of sizes to suit all Telehandler sizes. They feature high grade steel construction and front, side and heel wear plates where required. They can be fitted with teeth and bolt on cutting edges.
They come in a range of widths from 1.8m to 2.4m
with capacities from 0.5m³ to 1.5m³
McCormack Industries manufactures general purpose buckets suitable for wheel loaders. These buckets are ideal for handling gravel, sand and other debris. The Wheel loader style bucket comes standard with a bolt cutting edge and available with teeth. They feature 450 grade wear plate in the front, side and heel of the bucket to increase the buckets life. The wheel loader buckets come in a range of sizes to suit machines from 5 to 20 ton.
They come in a range of widths from 1.8m to 3m
with capacities from 1m³ to 3m³
Light Material Buckets are large capacity buckets suited to handling materials like grain, silage, loamy soils, compost and bark chip, etc. Made to suit Tractor Loaders, Telehandlers and Wheel Loaders.
McCormack Light Material buckets are ideal for front end loader use and are designed especially for any light materials – grain, silage, loamy soils, compost, bark chip etc. Built with the same materials as our General Purpose buckets, these buckets are reliable and strong with a capacity to suit all your needs.
We make them with standard side cutting edges and a weld on edge along the front length of the bucket. Bolt on edges are available as an extra.
Don’t have a McCormack loader? That’s ok; we can make all our gear suit any loader you have whether it’s quick hitch or manual hook up.
Bucket Sizes | ||||
Width | 1800mm | 2000mm | 2200mm | 2400mm |
Capacity | 0.80m3 | 1.00m3 | 1.12m3 | 1.20m3 |
Depth | 760mm | 840mm | 840mm | 840mm |
Height | 835mm | 900mm | 900mm | 900mm |
Weight | 260kg | 310kg | 360kg | 405kg |
Bucket Sizes | |||||
Width | 2400mm | 2400mm | 2400mm | 2400mm | 2400mm |
Capacity | 2.00m³ | 2.50m³ | 3.00m³ | 3.50m³ | 4.00m³ |
Depth | 900mm | 1020mm | 1200mm | 1300mm | 1500mm |
Height | 1090mm | 1175mm | 1280mm | 1360mm | 1460mm |
Weight | 530kg | 590kg | 800kg | 900kg | 970kg |
McCormack Industries manufactures light material buckets for Wheel Loaders. These buckets are ideal for handling grain, bark chip, silage or manure, and come with standard features including, side and front cuttings edges with a bolt on front cutting edge. The economical construction allows for maximum capacity, and are manufactured in a range of widths and capacities up to 6m³.
Available in a range of sizes to suit Wheel Loaders from 5 to 20 ton. Featuring high grade steel construction and front, side, and heel wear plates where required.

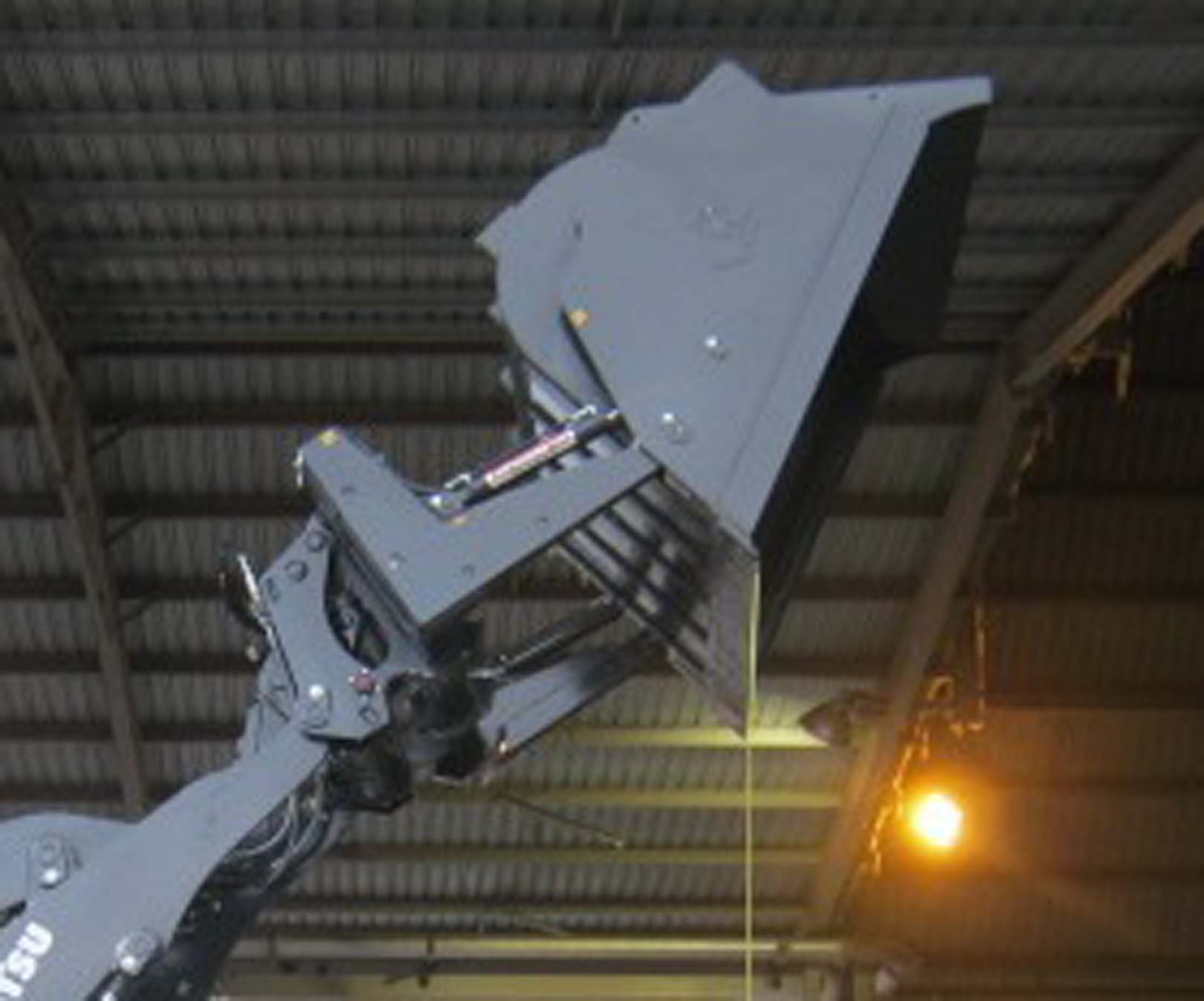

Large capacity buckets that are self pivoting, allowing extra reach and height
One of the downfalls of loading light and loose material into high sided trucks is that conventional buckets aren’t able to unload properly or even reach over the side. The Overtipping bucket incorporates a separate frame which effectively allows the bucket to tip from near the front cutting edge. This increases the height which the loader can clear while allowing all the material to be dumped efficiently. They are ideal for loading cotton seed, grain and green waste. They can be made to suit all makes of wheel loader or Telehandler.
Open design lets loose dirt fall through while rocks and other debris are collected
McCormack Industries make heavy duty buckets that are specifically designed for loading and carting rocks or other debris. These buckets are made from Australian sourced steel with front and side weld on cutting edges. The floor and part of the rear of the bucket are open to allow dirt to flow through. The 12mm ribs and stiffener plates in the design add extra strength and durability. We make these buckets the same widths and capacities as our General Purpose buckets meaning they are very practical. They can be made to suit all Front End Loader models and Hitches on request.
Bucket Sizes | |||
Width | 1800mm | 2100mm | 2400mm |
Capacity | 0.51m³ | 0.70m³ | 0.80m³ |
Depth | 640mm | 640mm | 640mm |
Height | 740mm | 740mm | 740mm |
For larger operators, a heavy duty Wheel Loader Rock Bucket is also available. These heavier, larger capacity buckets are made with 25mm hardwearing steel ribs as standard, to prolong the life of the bucket. The bucket range also features a replaceable cutting edge and replaceable heel wear plates. Built especially for sorting dirt and small rocks from larger rocks, sticks or concrete among many other applications.
McCormack Industries Manufactures a range of buckets for Skid Steers
McCormack Industries manufactures a 4in1 bucket specifically suited for use on Skid Steers. The heavy duty design and reinforced construction of the bucket means that it can handle the tough environment and conditions of skid steer work. This class of bucket comes standard with the industrial quality hydraulic rams that are used on all our 4in1’s. The front floor of the bucket is flat to allow for easier filling and is made from high grade steel. Teeth and bolt on cutting edges are also available as an optional extra.
McCormack Light material skid steer buckets are specifically designed for handling grain, cotton seeds, manure or compost. They feature a long flat floor for easy filling and low height for cab door clearance and visibility. They come standard with side and front cutting edges and are available with bolt on cutting edges.
